WEIGHTS & RATINGS
GVWR 5,000 lbs
Dry Weight 3,670 lbs
Carrying Capacity 1,330 lbs
Axle Weight Rating 5,000 lbs
Brake Rating 4,400 lbs electric
Tongue/Hitch Weight 240 lbs
Coupler/Ball Height 2ā ball, 18ā-20ā³ ball height
Ground Clearance 10.75ā
DIMENSIONS
Exterior Length 19′ 6ā³ | 233ā
Exterior Width (w/Fenders) 7ā² 11ā³ | 95ā
Exterior Height (w/AC) 9ā² 6ā³ | 114ā³
Exterior Height (w/o AC) 8ā² 3ā³ | 99ā
Exterior Box Length 15ā² 8ā³ | 159 (15ā² 8ā³ including storage box)
Exterior Box Width 6ā² 1ā³ | 73ā
Interior Length 13ā² | 156ā
Interior Height 6ā² 5ā³ | 77ā
CAPACITIES
Fresh Water Tank 40 gal
Grey Water Tank 44 gal

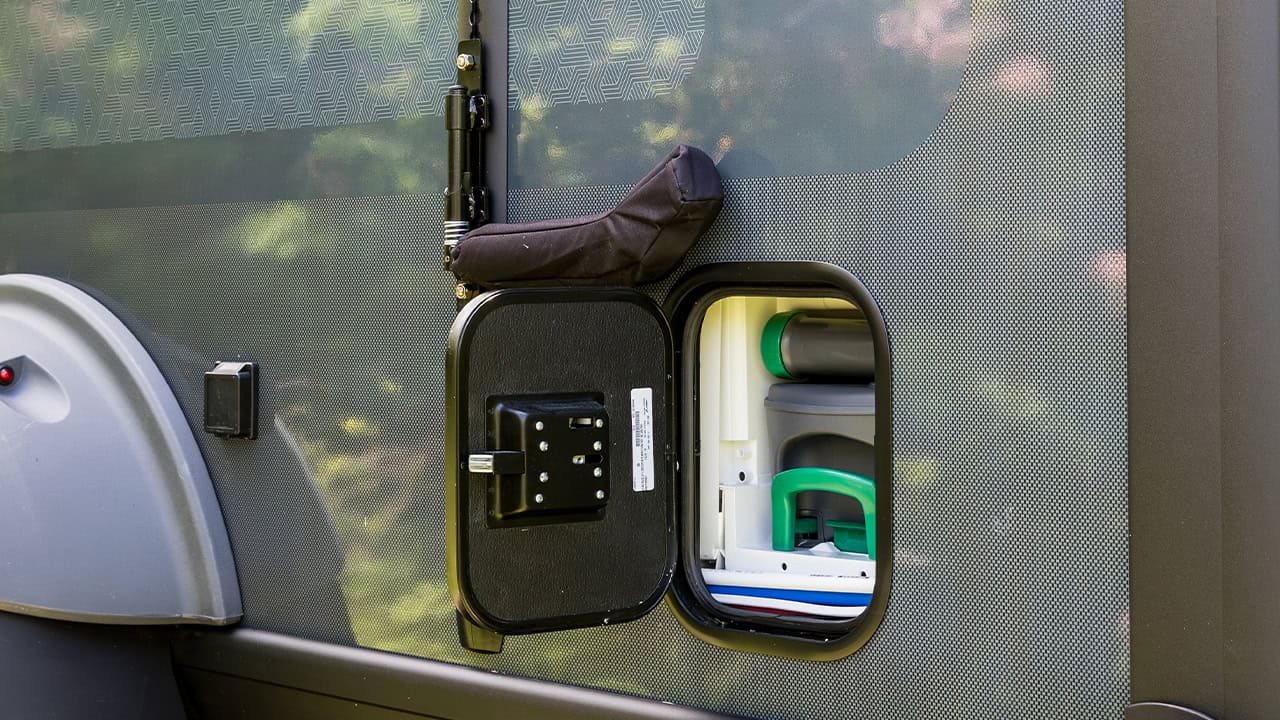

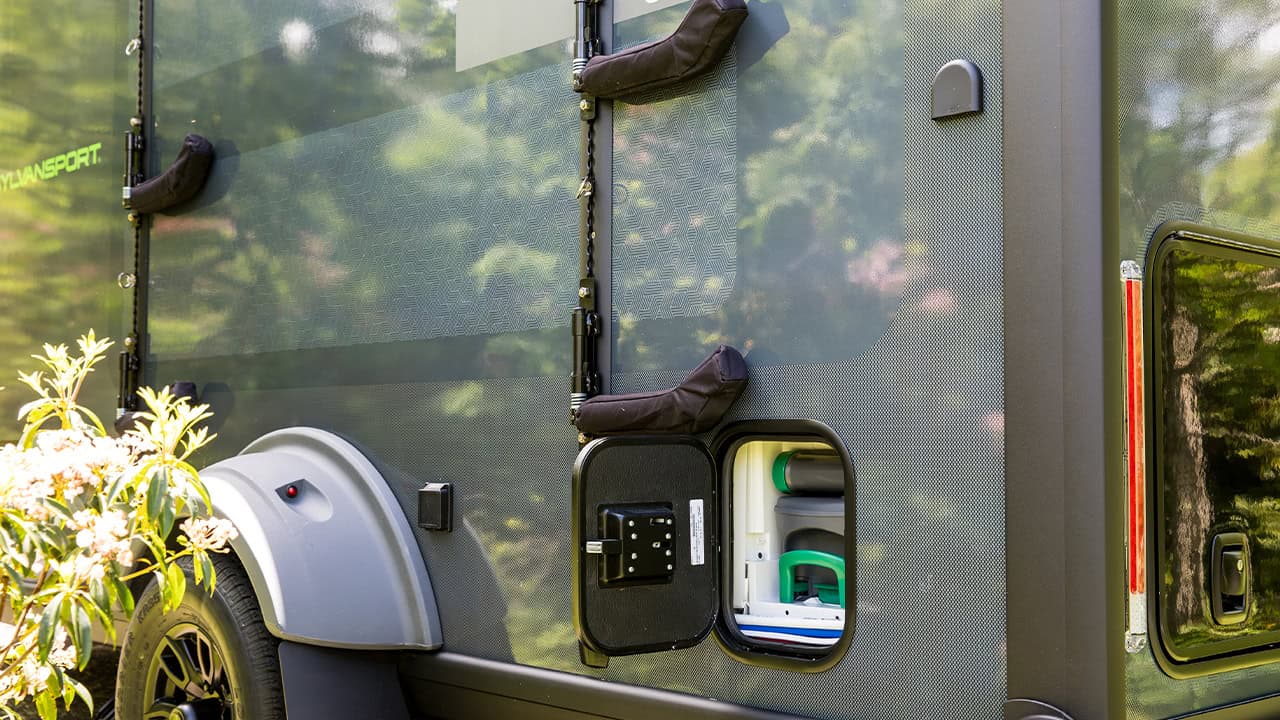

Electric Flush Cassette Toilet 5.1 gal

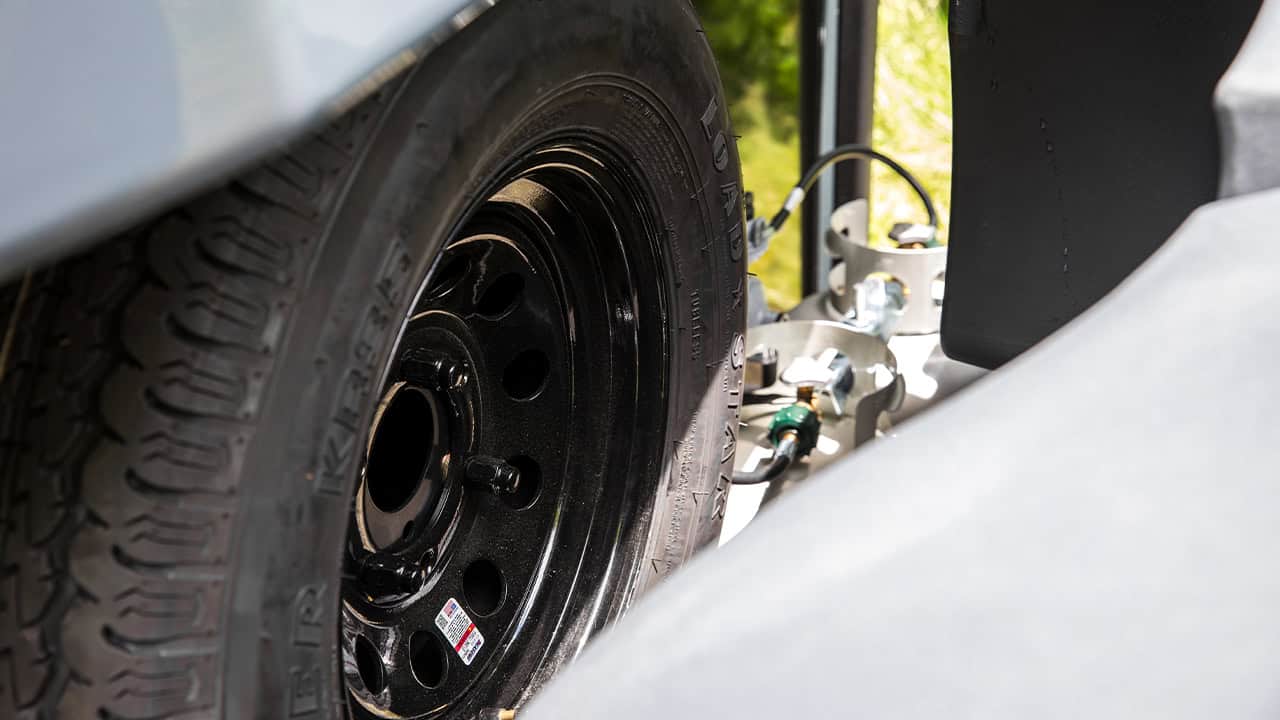

Propane Tank (x2) 20 lb | 4.7 gal

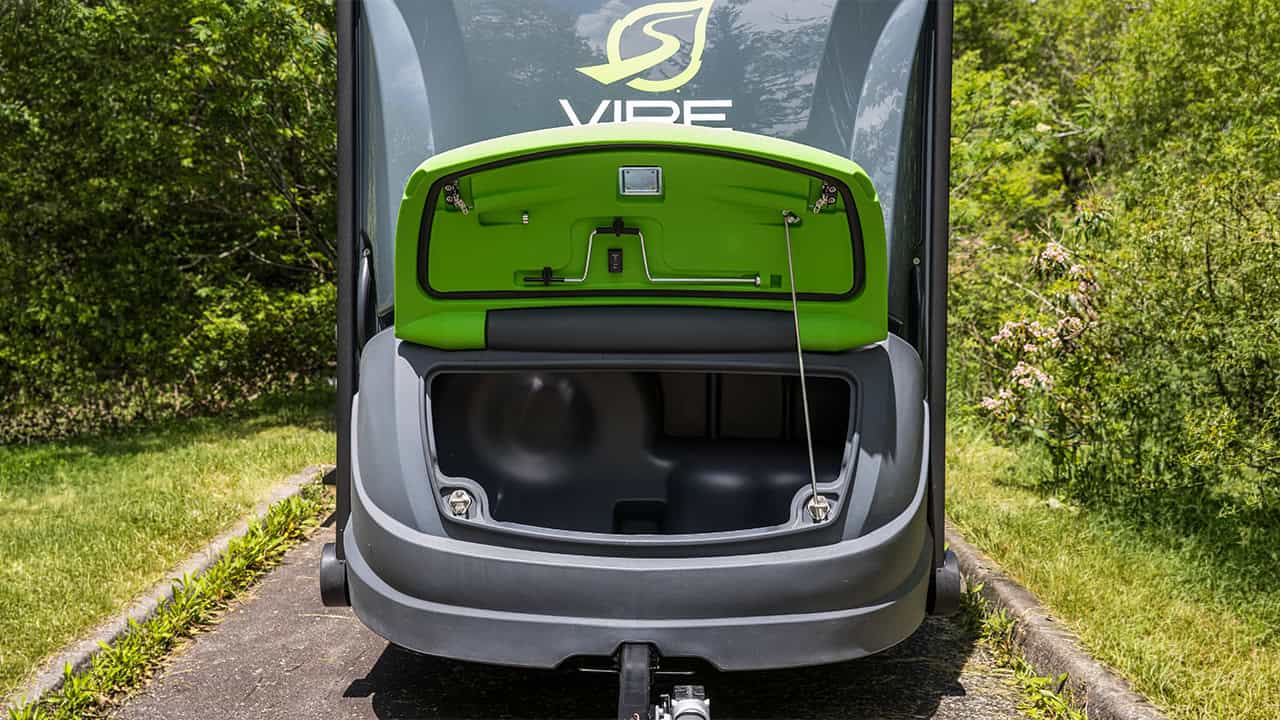

Easy-Slide Front Storage Box 15 cu ft
Sleeping Capacity 2
INTERIOR
TV (optional) 24″ on a swing arm

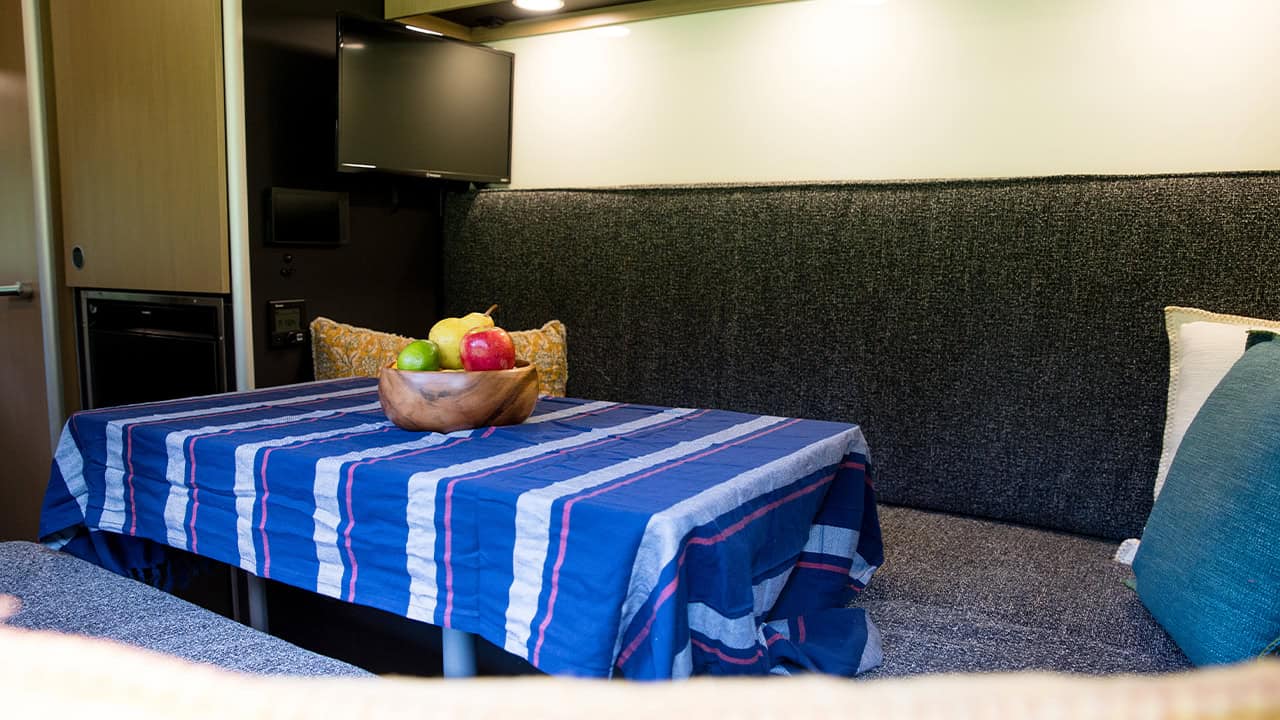

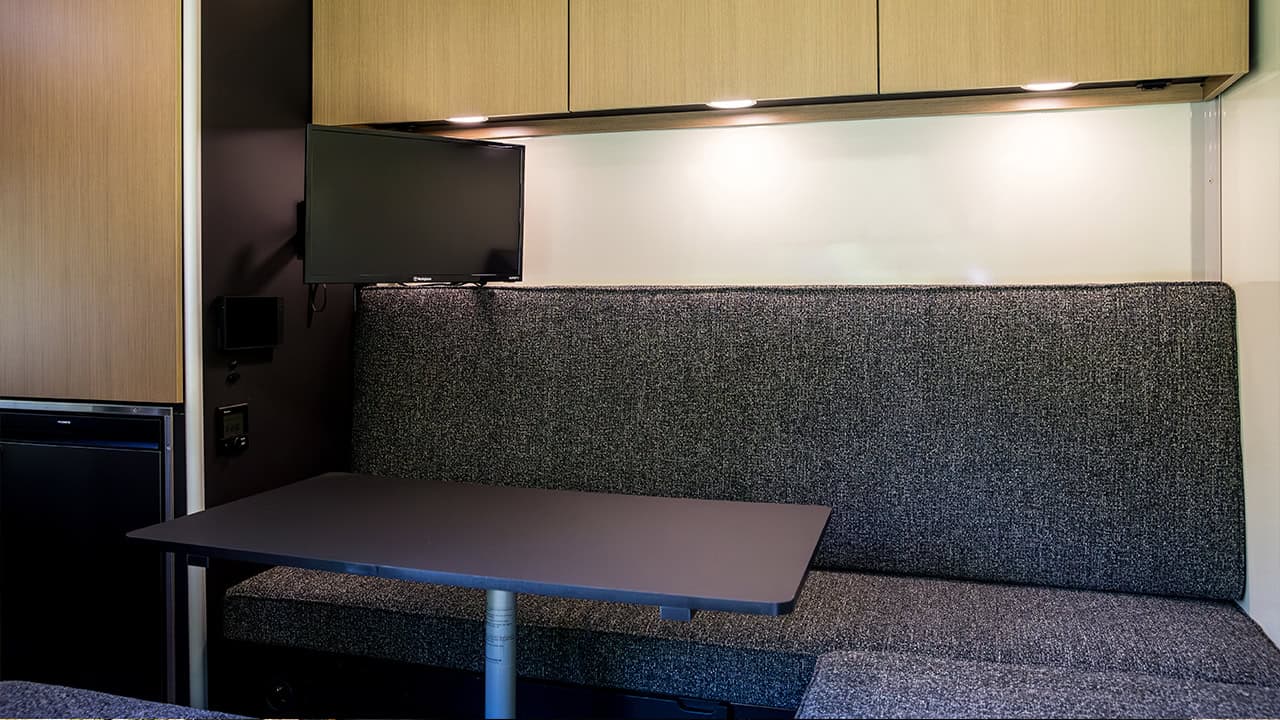

Lounge (cushion dimensions) U-shaped seating area: sides 80″ x 24″ (x2), center 30″ x 22″ (x1)
Cabinet – LoungeĀ 79.5″ x 15.125″ x 11.23″ (3 doors: 26.25″ x 15.125″ ea)
Cabinet – Entry 18″ x 24.25″ x 31″

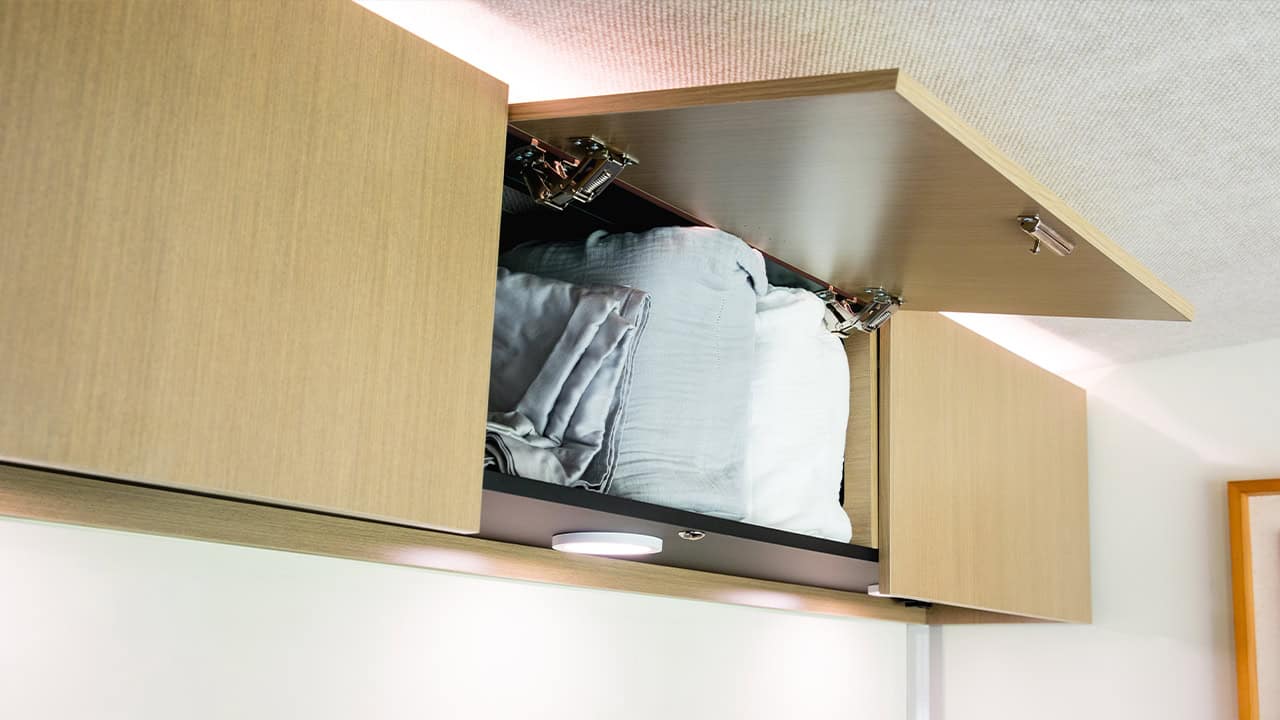

Cabinet – Kitchen Overhead 14″ x 14.875″ x 16.5″
Mattress Size 72″ x 80″, compatible w/ king size sheets
Table 22″ x 36″, removable and rotatable
Shower 35″ x 22.5″ x 75″, full size residential shower

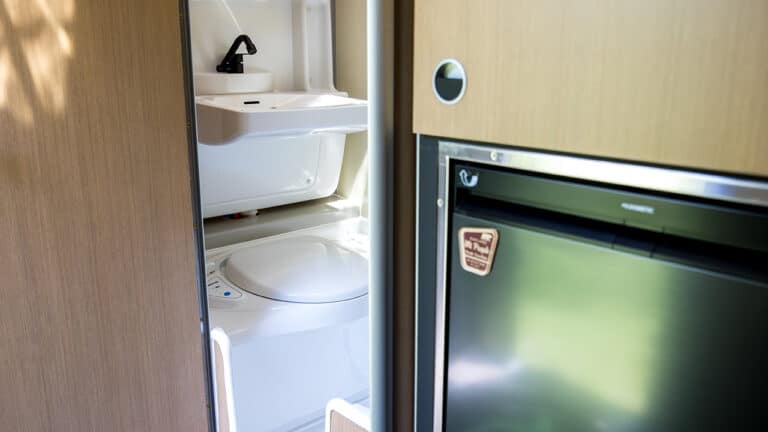

Bathroom Sink Fold-down sink in wet bath
EXTERIOR

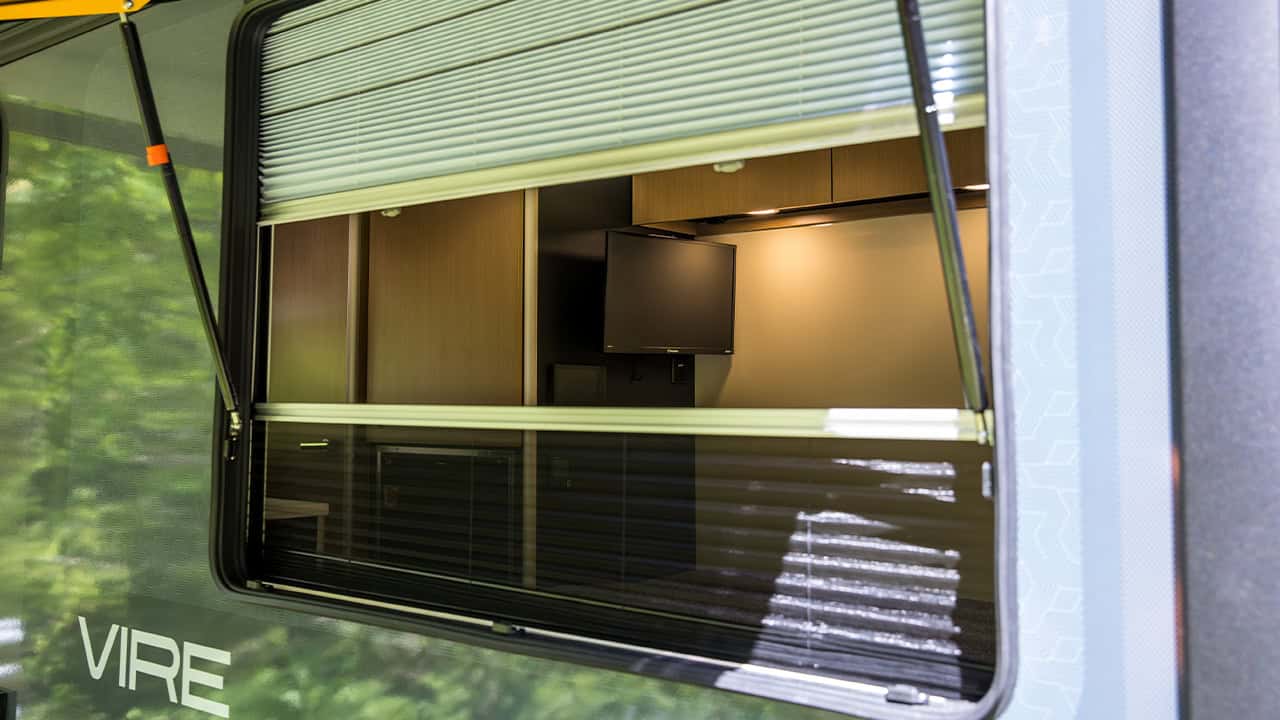

Window (main) 56″ x 40″, Largest thermoformed, hinged, gas assist lockable windows in the RV industry
Window (kitchen) 17″ x 22″

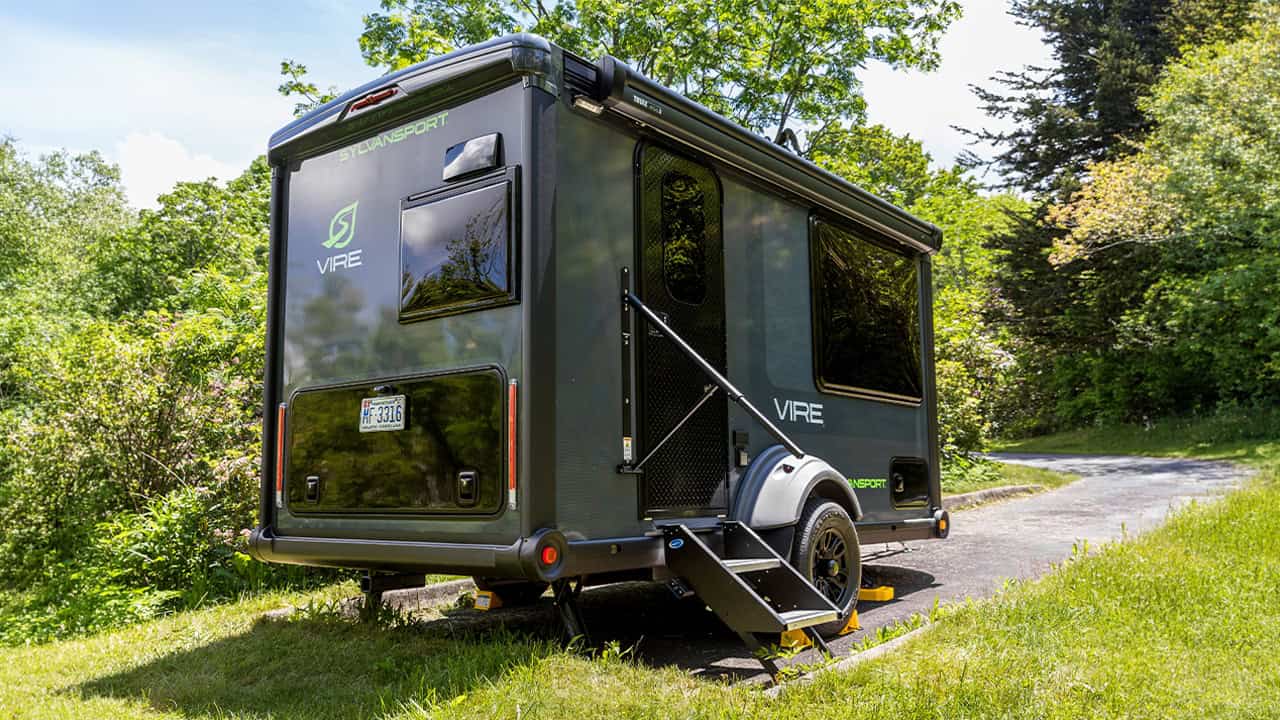

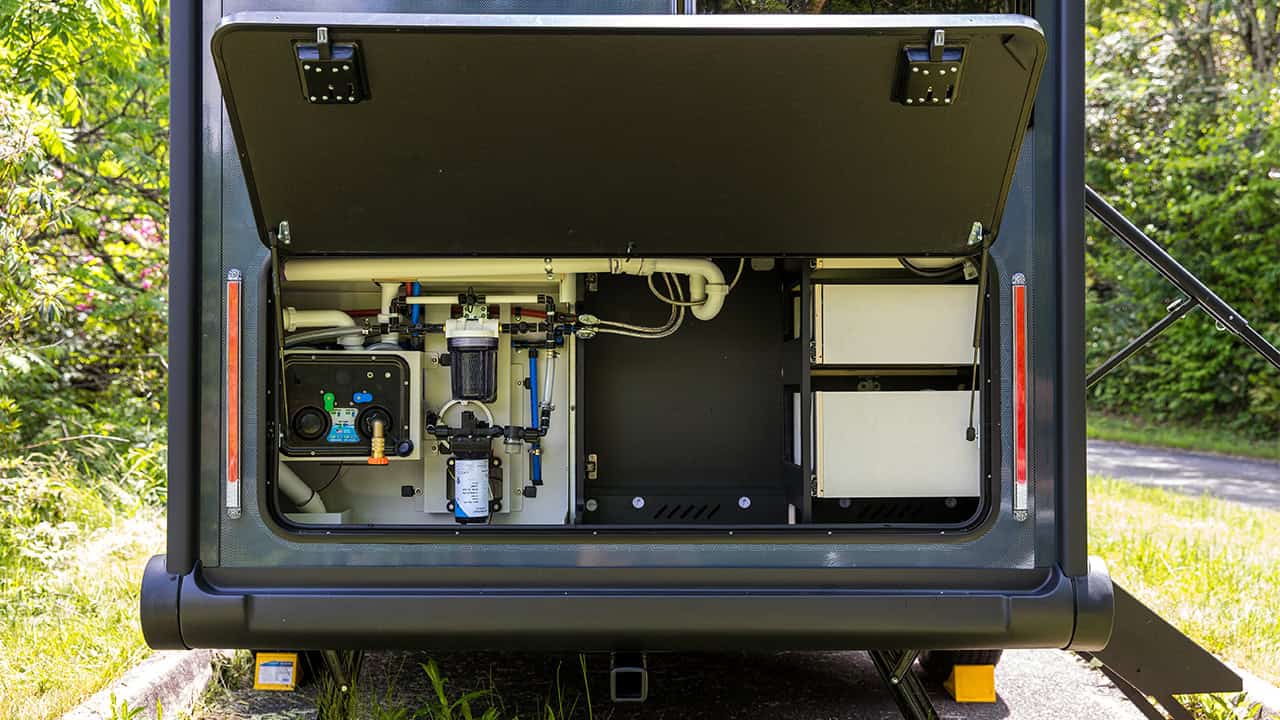

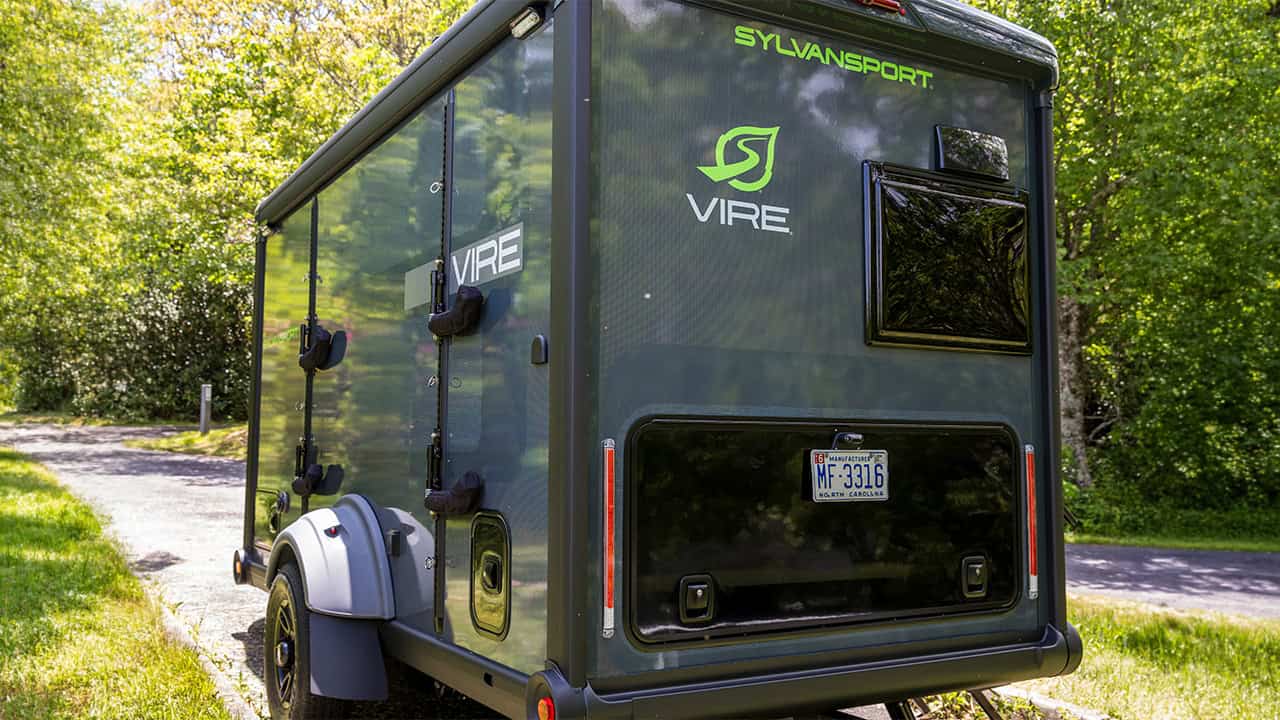

Rear Access Door 24ā x 60ā, hinged upward

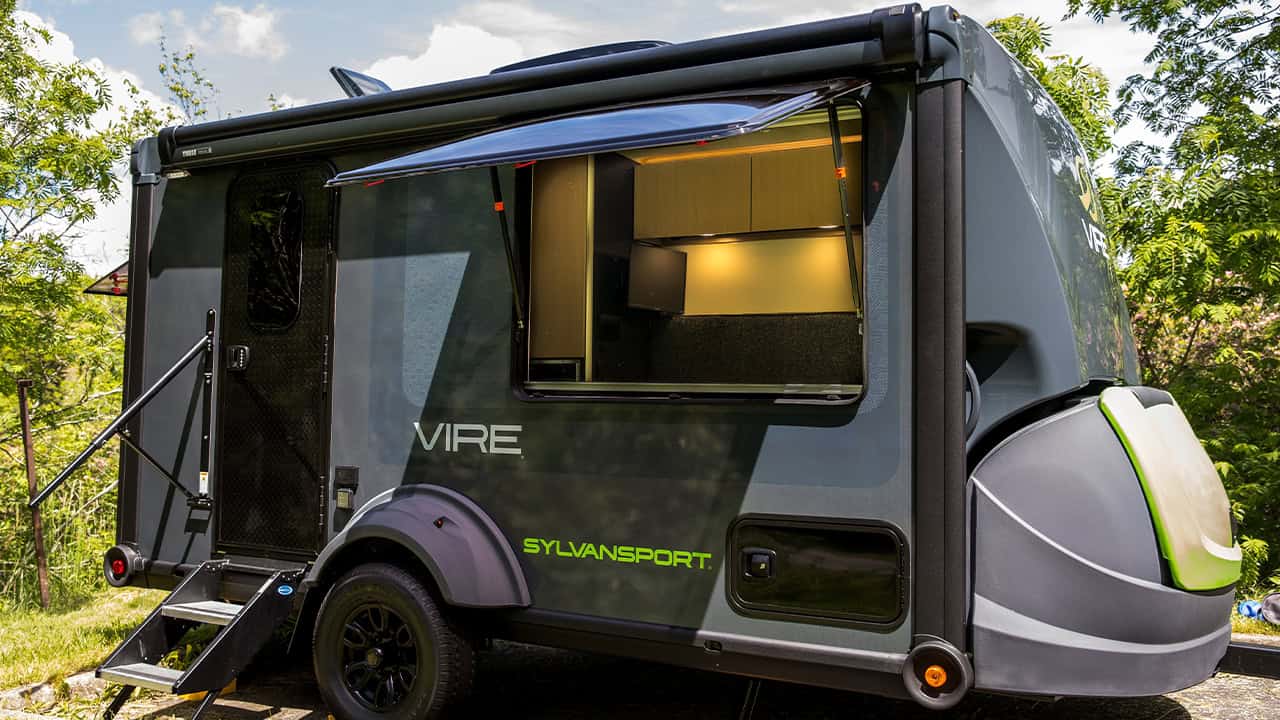

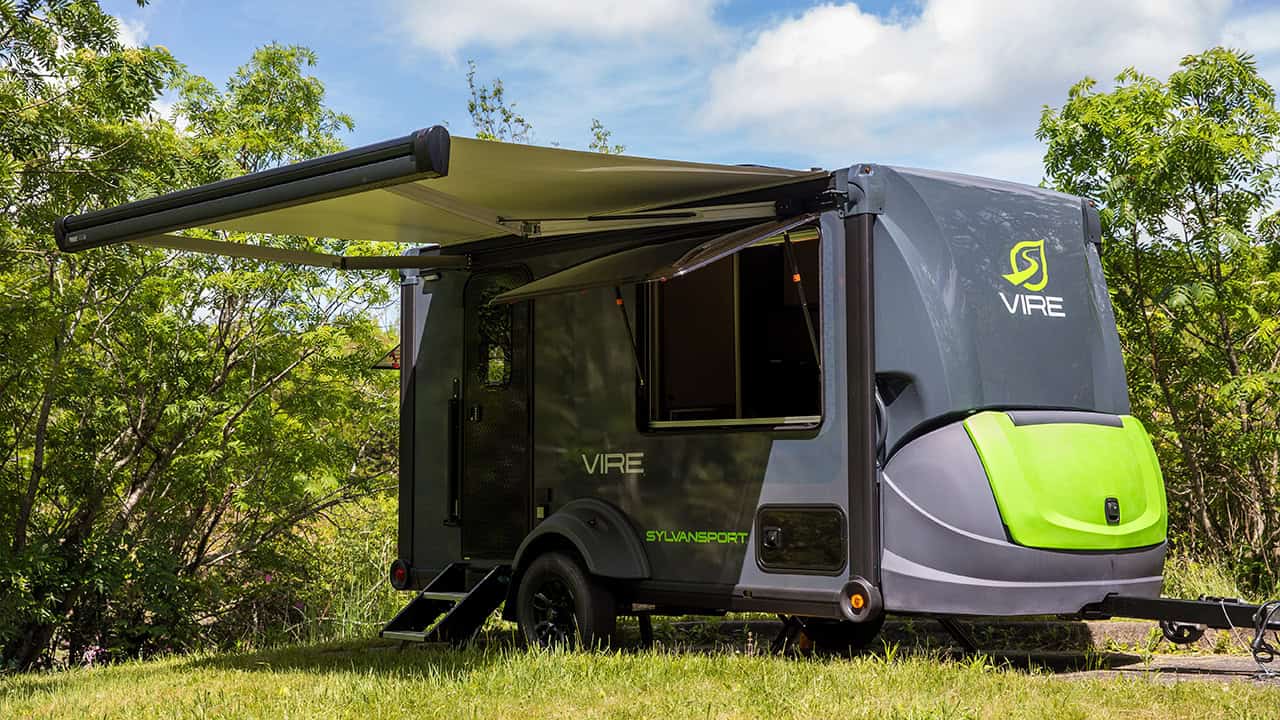

Awning Thule 12′ awning, with wind sensor/auto-retract
Wheels (2) 15Ć6 SH split spoke aluminum; 6 on 5.5
Tire Size 225/75R15, 10-ply Load Range E
Back-up CameraĀ Included
POWER
ECOFLOW POWER HUB
AC Output 120V-4,000W, 5,000VA, 60Hz (surge 10kVA)
DC Output (12V/24V) 13.6V-100A Max, 1360W Max, 26.4V-60A Max, 1584W Max
48V DC Output / Smart Generator (48V) 51.2Vā55A Max
USB A Output 5Vā2.4A Max
Total Output 8752W Max
AC Input (Charge Only) 100-120V~ 4000W Max, 50Hz/60Hz
48V DC Output / Smart Generator (48V) 40-57.6V=70A Max
Operating Temperature -13°F to 140°F
Solar Panels (optional) 600 watts
Battery (standard) LiFEPO4, 2K, 166 aH
Battery (ultimate) LiFEPO4, 5K, 833 aH
Shore Power 30-amp

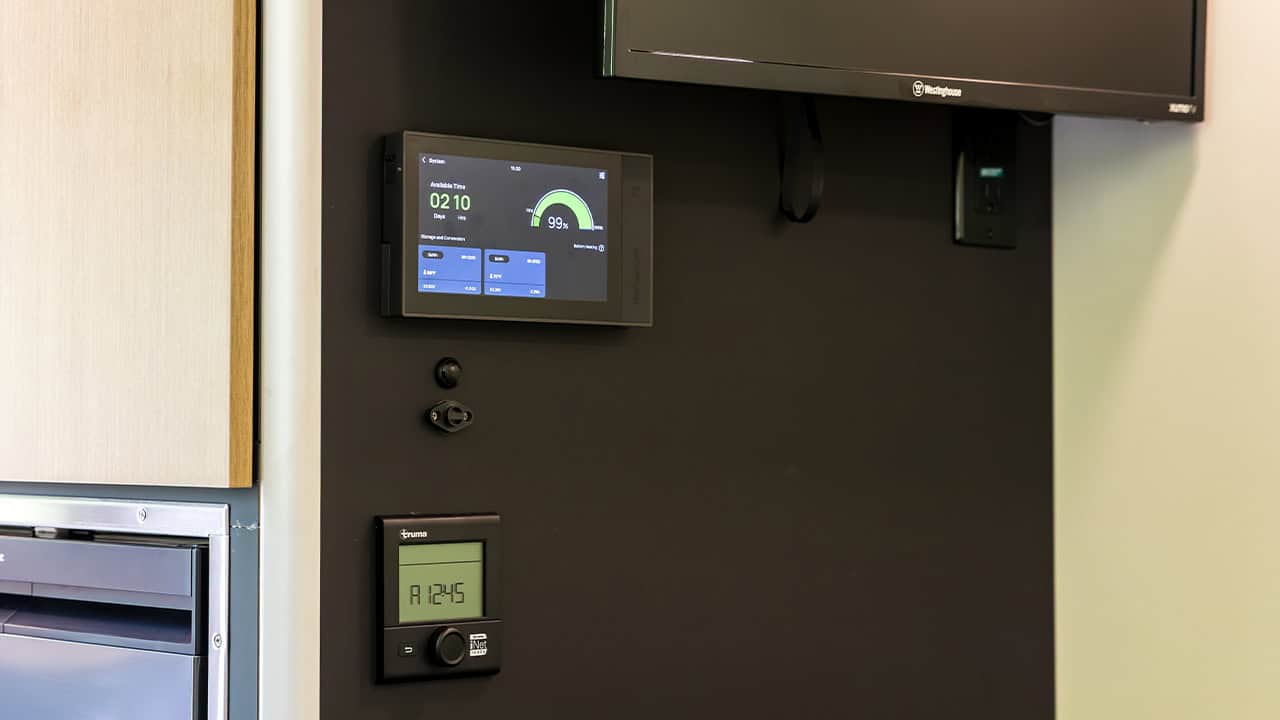

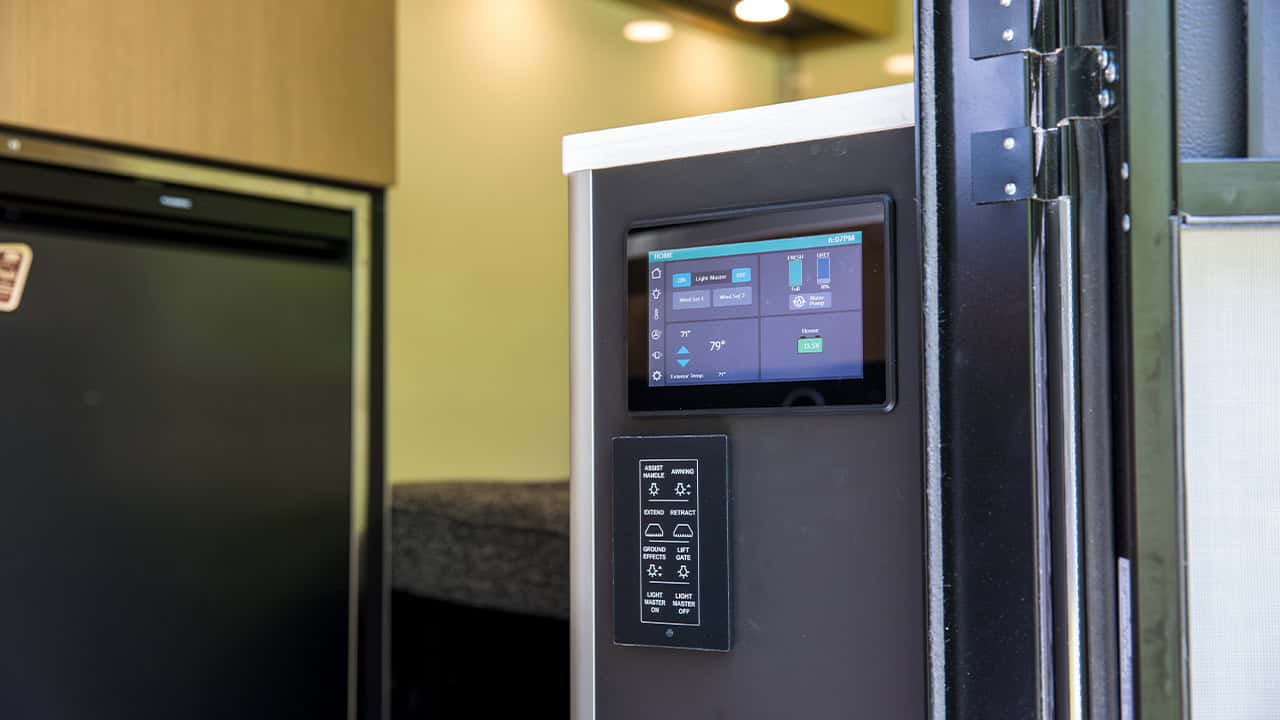

Electrical Control System Firefly Integrations Smart RV Control System

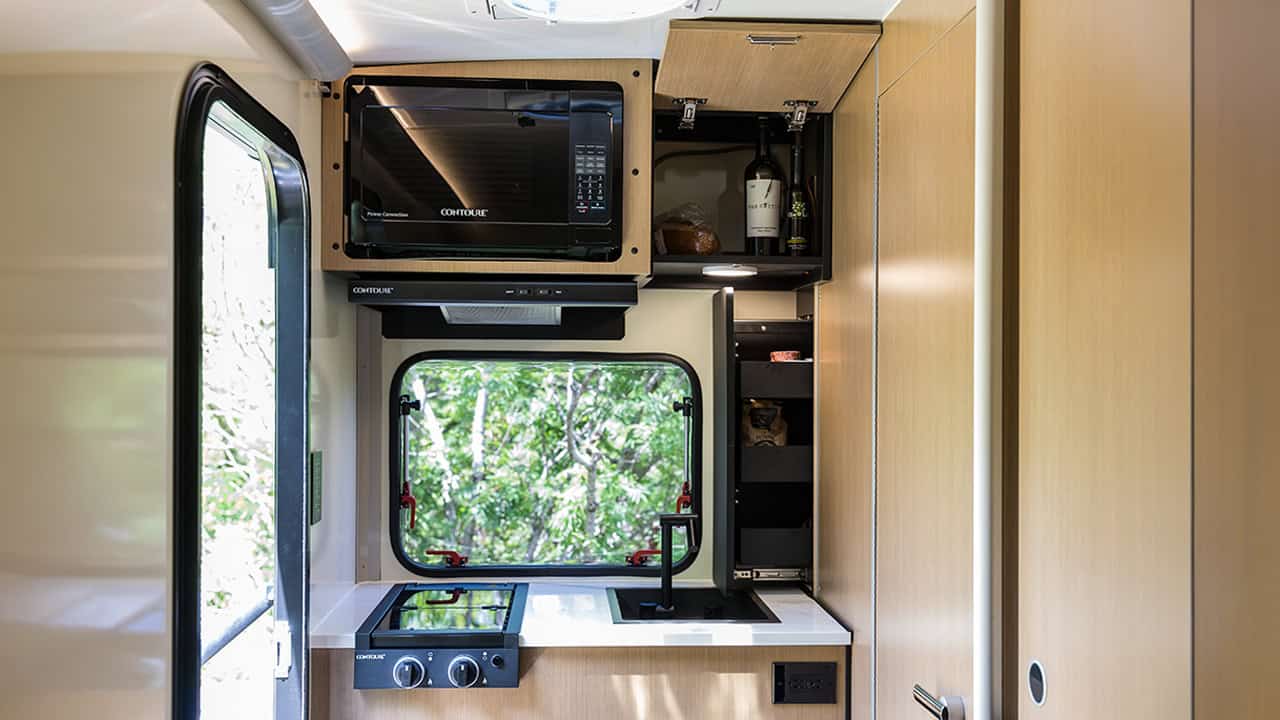

KITCHEN
Countertop, Cabinets, and Shelving Composite

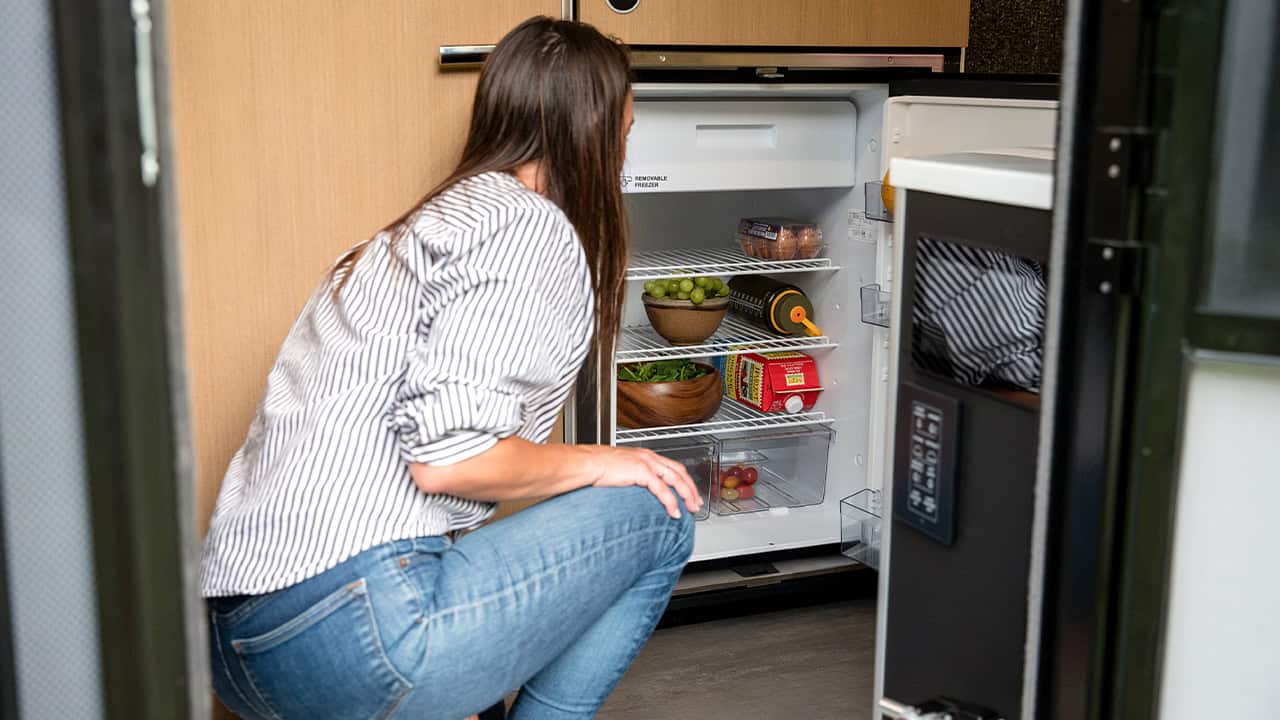

Fridge/Freezer Dometic NRX130, 126L/4.6 cu ft, 82 L freezer capacity, 32″ x 20.7″ x 22.4″ Energy Efficient 12V DC

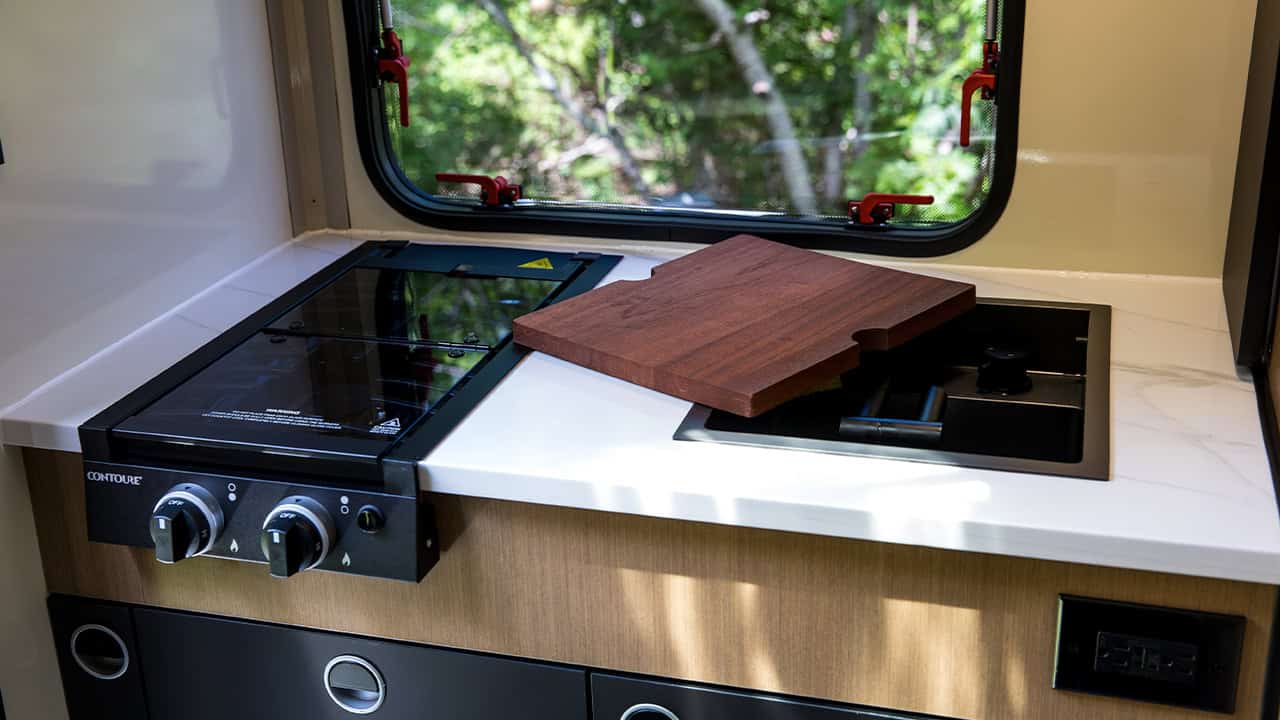

Stove 2 burner propane w/ cast iron grates
Microwave Oven 1.1 cu ft | 1600W, SMART FRY AND CONVECTION
Kitchen Sink 13″ x 15″ x 7″, foldable faucet, 360 degree rotating faucet, 3mm thick w/ rubber padding for durability & reduces vibrations
Detector Smoke / carbon monoxide detector
HEATING & COOLING
Furnace & Water Heater Truma Combi Eco 10L (7,500 & 14,300 BTU/h operating levels)
Air Conditioner Truma Aventa Eco + SoftStart, reduces start up power consumption, 13,500 BTU/h, auto cooling, quiet night mode, dehumidifcation
4 season
Roof fans (2) 900 CFM, flush-mounted, reversible, rain sensor
OPTIONAL UPGRADES
Articulating Coupler 3″ MAX Coupler Articulating Hitch
Off-Road Tires Kenda Klever M/T KR29; ST235/75 R15; load range D (8-ply)
Rear Hitch perfect for bike racks and cargo carriers

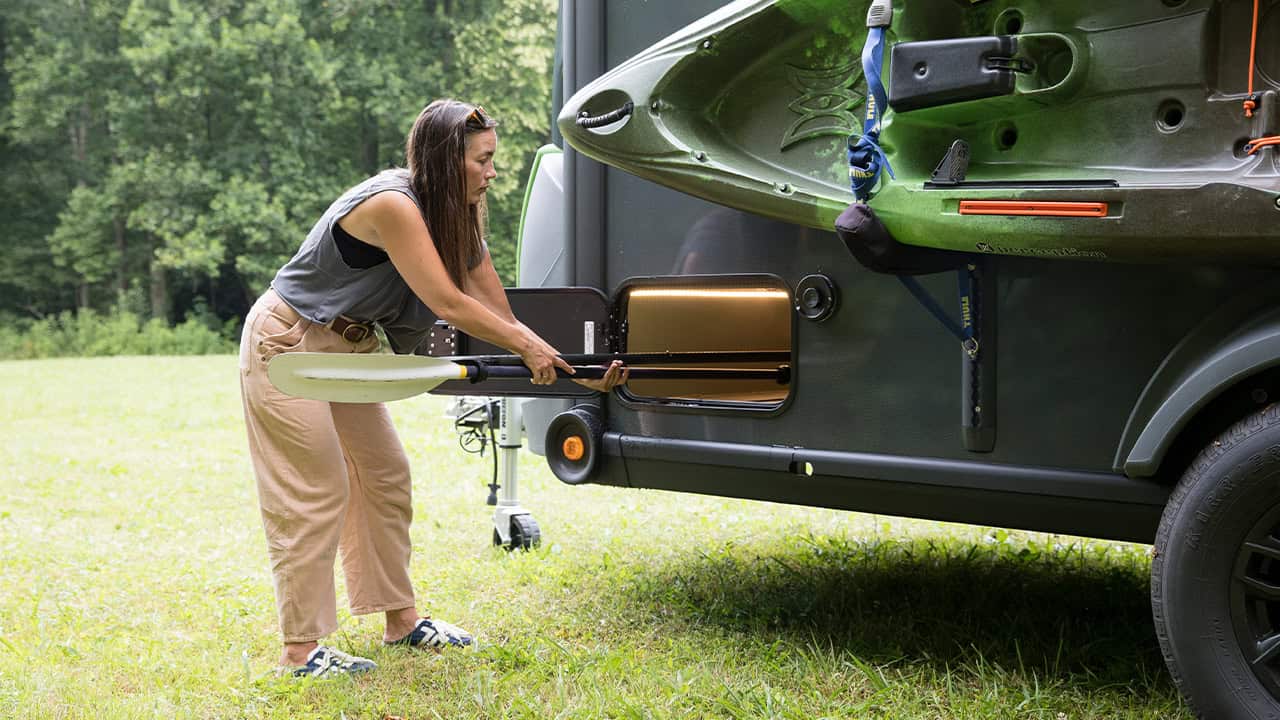

Boat Racks Spring loaded side-mount boat racks on airline cargo style mount rails
