tech specs
It’s all about the details. Dimensions, weights, materials; here are some specifics you might be looking for.
GO
dimensions
Weight |
English |
Metric |
|---|---|---|
| Overall – dry | 840 lbs | 381 kg |
| Tongue Weight | 85 lbs | 39 kg |
| Equipment Rack – including tent pod | 230 lbs | 104 kg |
| Gross Vehicle Weight Rating (GVWR) | 1,800 lbs | 816 cm |

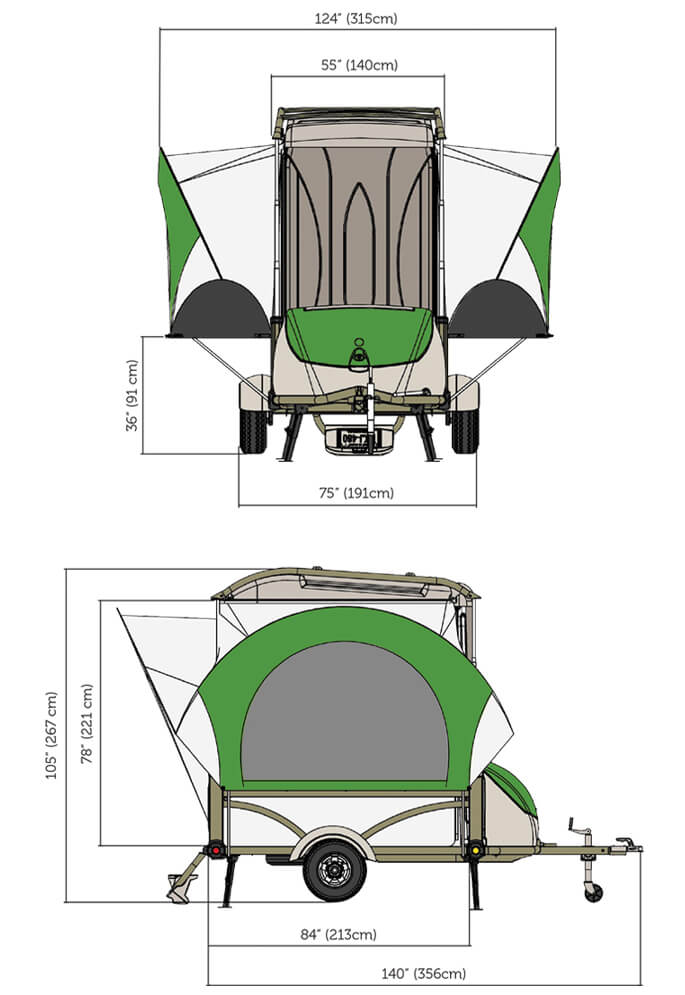

Dimensions (l x w x h) |
English |
Metric |
|---|---|---|
| Exterior – compact | 140 x 75 x 52 in | 356 x 191 x 132 cm |
| Exterior – expanded | 140 x 75 x 80 in | 356 x 191 x 203 cm |
| Exterior – camper | 140 x 124 x 105 in | 356 x 315 x 267 cm |

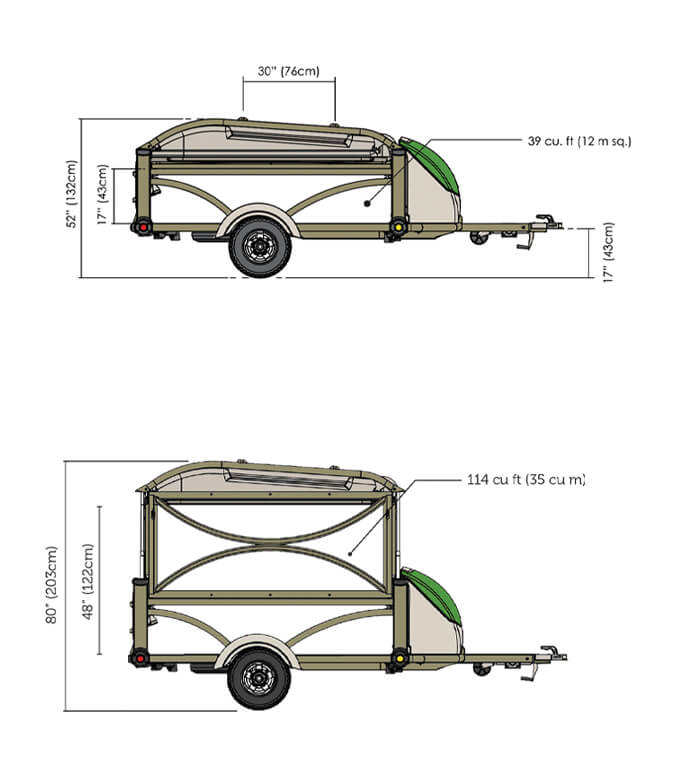

| Cargo Deck – compact | 84 x 48 x 17 in | 213 x 122 x 43 cm |
| Cargo Deck – expanded | 84 x 48 x 48 in | 213 x 122 x 122 cm |
| Interior Floor Dimension | 84 x 48 in | 213 x 122 cm |
| Interior Standing Height | 77 in | 196 cm |
| Bed Platform | 80 x 34 in | 203 x 86 cm |
| Equipment Rack | 87 x 48 x 17 in | 221 x 122 x 48 cm |
| Equipment Rack – crossbar spread | 30 in | 76 cm |
Capacity |
English |
Metric |
|---|---|---|
| Storage Box | 9 ft3 | 0.25 m3 |
| Side Bed Platforms (per side) | 500 lbs | 227 kg |
| Center Bed Platform (dispersed) | 500 lbs | 227 kg |
| Gross Vehicle Weight Rating (GVWR) | 1,850 lbs | 839 kg |
| Total Carrying Capacity | 1,010 lbs | 458 kg |
| Equipment Rack Capacity | 160 lbs | 73 kg |
Additional Specifications and features
GO Frame 6000 series aluminum custom extrusions TIG welded w/ two-step powder coat finish
Tent Pod Thermo-formed ABS clamshell w/ hydraulic assist
Tent Body 210 denier polyester ripstop nylon & 210 denier oxford nylon floor w/ #10 self-healing zipper
Poles Color-coded, anodized aluminum
Awning 210 denier polyester ripstop nylon
Storage Box, Fenders, Tailgate Roto-molded polyethylene
Deck .125 in 3000 series aluminum diamond plate deck (bright finish)
Lift System Goshen cable-drive
Axle Dexter torsion axle w/ self-lubricating hub
Wheels cast aluminum
Tires Kenda LoadStar 205/65-10 (speed rating 87 mph)
Spare Tire Kenda LoadStar 4.8×12 mounted on Galvanized steel wheel
Coupler Ergonomic handle w/ one step engagement
Tongue Powder-coated, hardened steel
Swivel Jack bolt on swivel trailer jack w/ 6 in caster wheel
Ground Clearance 13 in (11 in with spare tire mounted)
Hitch 1-1/4 or 2 in receiver
Ball 2 in ball w/ 17 in ball height
Electrical Flat 4-pin connector plug
